UHF Slot Antenna
Model : SL470G9 /11 /12

Frequency: 470-860MHz, Gain: 9.5-12.5dBd Bandwidth: 16MHz;  Pol: Horizontal;  Size: 3m/4m/5m

Marks: UHF Slot Antennas are designed to the needs of TV analog and digital broadcast, tower top or side mount(available).

PDF Download

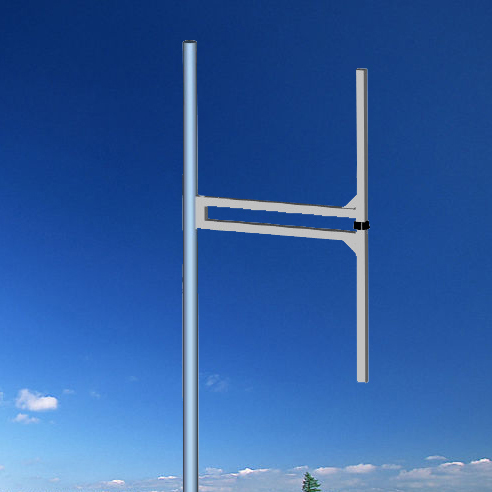

FM Dipole Antenna
Model : FM88-108G2

Frequency: 88-108MHz, 2dBi;  Beamwidth: 190deg, Pol: H or V, Size: 1400x850x165mm

Marks: FM antenna system ideal for full high digital or analog service stations, with exemplary linearity and power handling capability

PDF Download

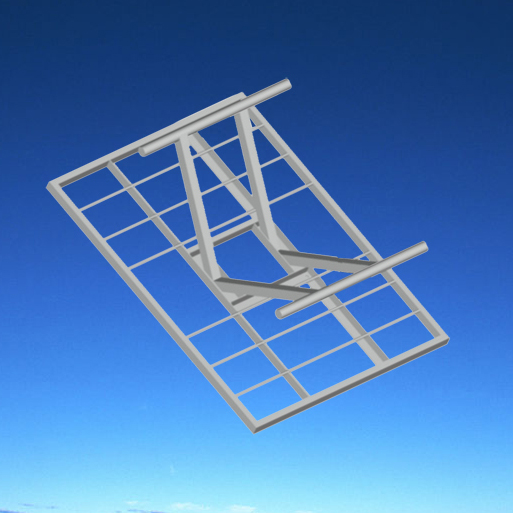

Directional FM Dual Dipole Antenna with reflector
Model : DFM88-108G9D

Frequency: 88-108MHz, 9dBi;  Beamwidth: 70deg, Pol: H or V, Size: 1900x2500x950mm

Marks: Many years of dependable service, DC grounded for each bay,  Excellent VSWR and bandwidth; Low maintenance

PDF Download
Directional FM Dipole Antenna with reflector
Model : DFM88-108G6

Frequency: 88-108MHz, 6.5dBi;  Beamwidth: 110deg, Pol: H or V, Size: 1900x1300x950mm

Marks: Many years of dependable service, DC grounded for each bay,  Excellent VSWR and bandwidth; Low maintenance

PDF Download
