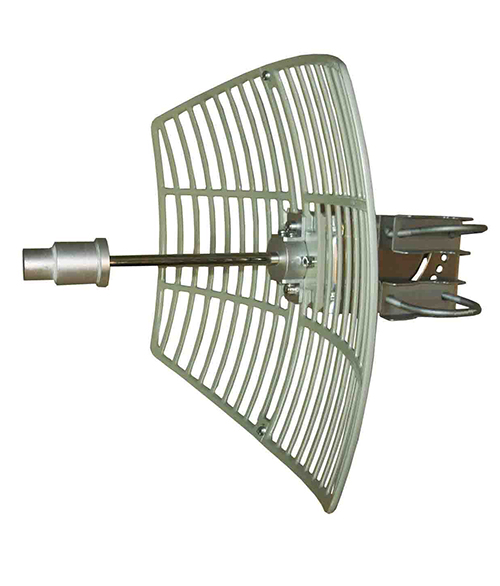

3G/4G LTE MiMO Grid Antenna
Model : DG1727G24

Dual Pol: V-Pol & H-Pol or ±45° X Polarization, ultra wideband: 1710-2700MHz, 23~26dBi, Diameter: 600x900mm

PDF Download

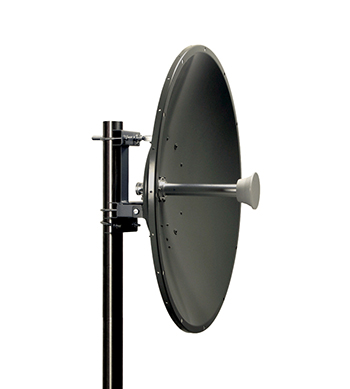

5GHz 25dBi MiMO / Dual Polarization Dish Antenna
Model : DD5000G25D

Frequency:4900-5850MHz, Gain: 2x25dBi, Beamwidth: 7deg, Pol: Vertical & Horizontal, Dia: 400mm

Marks: Die Cast Solid Dish construction makes high quality and superior strength for all weather condition. Supplied with a tilt and swivel mast mount kit. Wideband and High Gain for IEEE 802.11a and  IEEE 802.11n Wireless LAN.

PDF Download

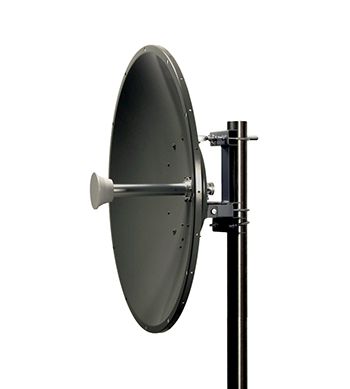

5GHz 30dBi MiMO / Dual Polarized Dish Antenna
Model : DD5000G30D

Frequency:4900-5850MHz, Gain: 2x30dBi, Beamwidth: 4.8deg, Pol: Vertical & Horizontal, Dia: 600mm

Marks: Designed for backhual Applications and long range directional for wireless LAN: 5.3GHz Band, 5.4GHz Band, 5.8GHz ISM Bands IEEE 802.11a/n Wireless LAN and Unlicensed European 5.4GHz Band.

PDF Download

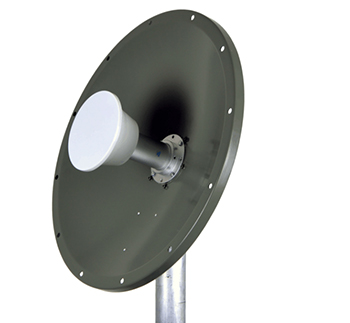

5GHz 32dBi MiMO / Dual Polarization Dish Antenna
Model : DD5000G32D

Frequency:4900-5850MHz, Gain: 2x32dBi, Beamwidth: 3.5deg, Pol: Vertical & Horizontal, Dia: 900mm

Marks: Designed for backhual Applications and long range directional for wireless LAN: 5.3GHz Band, 5.4GHz Band, 5.8GHz ISM Bands IEEE 802.11a Wireless LAN and Unlicensed European 5.4GHz Band.

PDF Download

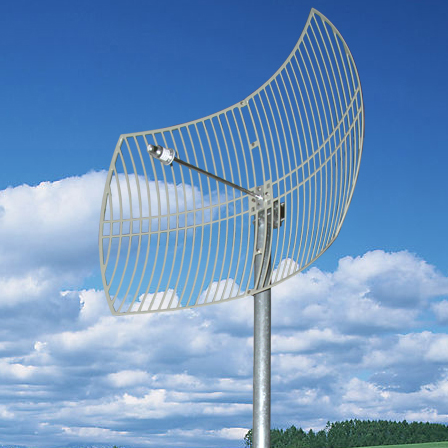

5.8GHz ISM Band 32dBi Parabolic Grid Antenna
Model : DG5800G32

Frequency:5725-5850MHz, Gain: 32dBi, Beamwidth: 6deg, Pol: Vertical,  Size: 600x900mmmm

Marks: Featured Construction  offering a Light Weight and Low Wind Load Design Makes It Possible High Portability & Installability. Offering a High Gain & Ideal Pattern with Unwanted Beamwidth Side Lobe.

PDF Download
5.8GHz ISM Band 25dBi Parabolic Grid Antenna
Model : DG5800G25

Frequency:5725-5850MHz, Gain: 25dBi, Beamwidth: 8deg, Pol: Vertical,  Size: 300x400mmmm

Marks: Featured Construction  offering a Light Weight and Low Wind Load Design Makes It Possible High Portability & Installability. Offering a High Gain & Ideal Pattern with Unwanted Beamwidth Side Lobe.

PDF Download
