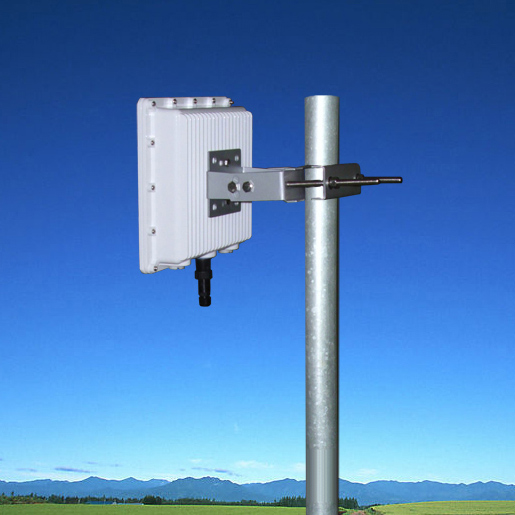

Outdoor Installation – Integrated with Mast Mount Kit

Frequency: 2400-2485 MHz; 5100-5850MHz, Gain: 10dBi / 13dBi, Beamwidth: 360°, Pol: Dual Linear, Size: 180x1050mm

Marks: Meets standard: IEEE 802.11ac and IEEE 802.11n . Four-port MIMO design for multi-band wireless LAN applications. Dual-band MIMO antenna provides spatial diversity coverage of 2.4-2.5GHz WiFi and 5.1-5.9GHz Wi-Fi.

Frequency: 2400-2485 MHz; 5100-5850MHz, Gain: 6dBi / 8dBi, Beamwidth: 360°, Pol: Dual Linear, Size: 180x550mm

Marks: Dual-band MIMO antenna provides spatial diversity coverage of 2.4-2.5GHz WiFi and 5.1-5.9GHz Wi-Fi, meet standard: IEEE 802.11ac and IEEE 802.11n. Four-port MIMO design for multi-band wireless LAN applications.

Frequency:5100-5850MHz, Gain: 8dBi, Beamwidth: 360°, Pol: Vertical, Size: 35x380mm

Marks: 3 dBi, 6 dBi, 9 dBi & 12 dBi antennas provide uniform omni coverage for 5GHz application; models are available from 3-13 dBi gain. The antennas are durable and rugged. They can withstand the harshest environments of snow, wind, rain and ice.

Frequency:2400-2485MHz, Gain: 7dBi, Beamwidth: 360°, Pol: Vertical,  Size: Dia 35x420mm

Marks: This 2.4GHz ISM Band Omni Antenna integrated with N-female,  is rugged,  lightweight  and waterproof construction It is easily installed to wall or pole connected to Access Point, Router, Bridge etc.

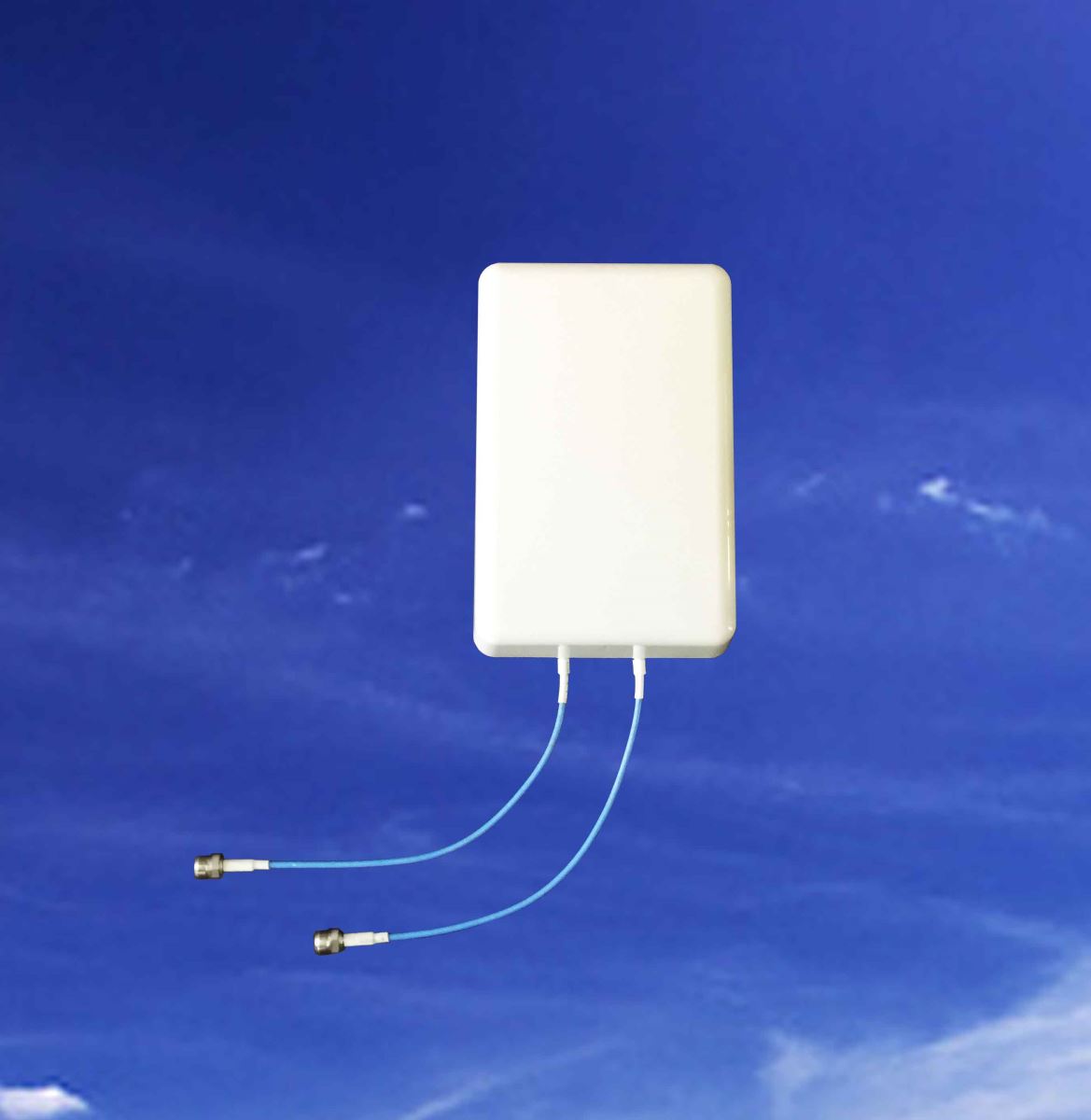

Frequency: 600-2700MHz, Gain:8dBi,  Beamwidth: 90°, Pol: V & H, Size: 310×200x65mm

Marks: This wideband Dual Pol Antenna designed for 4G LTE multiband coverage. Optional Mount available for Mast or Wall. It is ideal for Small Cells, Indoor / Outdoor DAS systems.

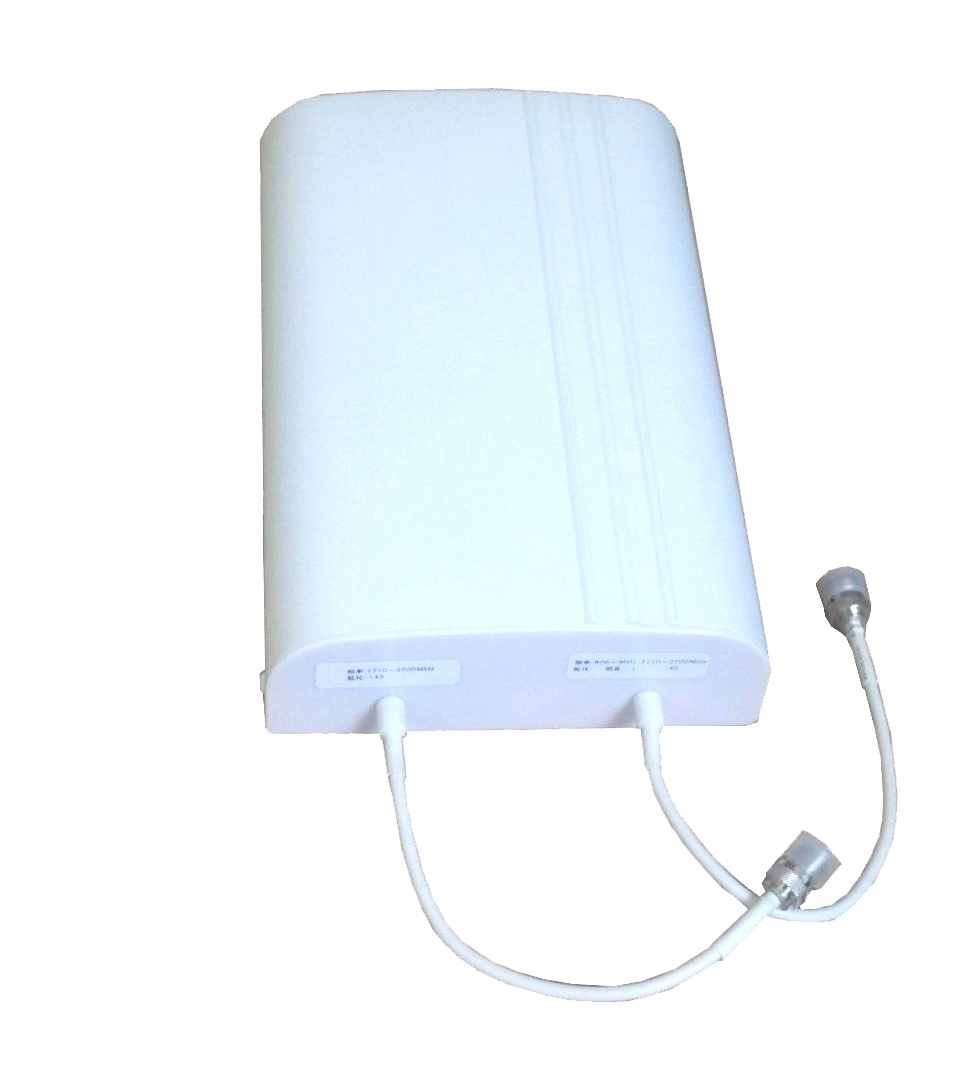

Frequency: 698-2700MHz, Gain:8dBi,  Beamwidth: 80°, Pol: V & H, Size: 305x185x65mm

Marks: This wideband Dual Pol Antenna designed for 4G LTE multiband coverage. Optional Mount available for Mast or Wall. It is ideal for Small Cells, Indoor / Outdoor DAS systems.

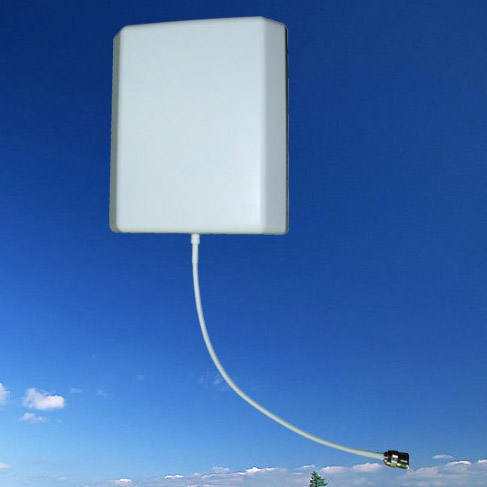

Frequency:  698-960MHz, 1710-2700MHz, Gain: 6~8dBi, Beamwidth: 85deg, Pol: Vertical, Size: 207x177x45mm

Marks：Ultra wideband covering 2G/3G/4G/WiFi bands, well satisfies the world communication system requirement. It can meet the low Passive IM3 test with 20w/43dBm Power to be < - 153dBc.

Frequency: 865-928 MHz, 15dBi; Beamwidth: 65°, Pol: Verical, Size: 1200x280x120mm

Marks: Antenna tilt adjustment via mechanical mount installation, Mechanical Downtilt 0-15°,  Models for both US and EU applications

Frequency: 865-868MHz; Gain: 8dBi,  Beamwidth: 360°, Pol: Linear, Size:1200x26mm

Marks: Models for either US or EU applications, The rugged radome and heavy alumium make it well suited  for industrial applications.

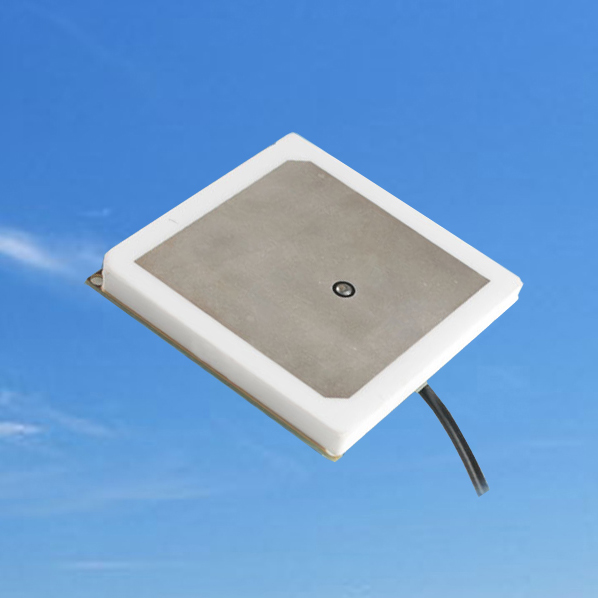

Frequency: 902-928MHz / 865-869MHz; Gain: 4.5dBi,  Beamwidth: 90°, Pol: Circular, Size:65x65x6mm

Marks: Models for either US or EU applications, Mini size offer low profile

Frequency: 902-928MHz / 865-869MHz; Gain: 5.5dBi,  80°, Pol: Circular, Size:120x120x6mm

Marks: Models for either US or EU applications, Mini size offer low profile

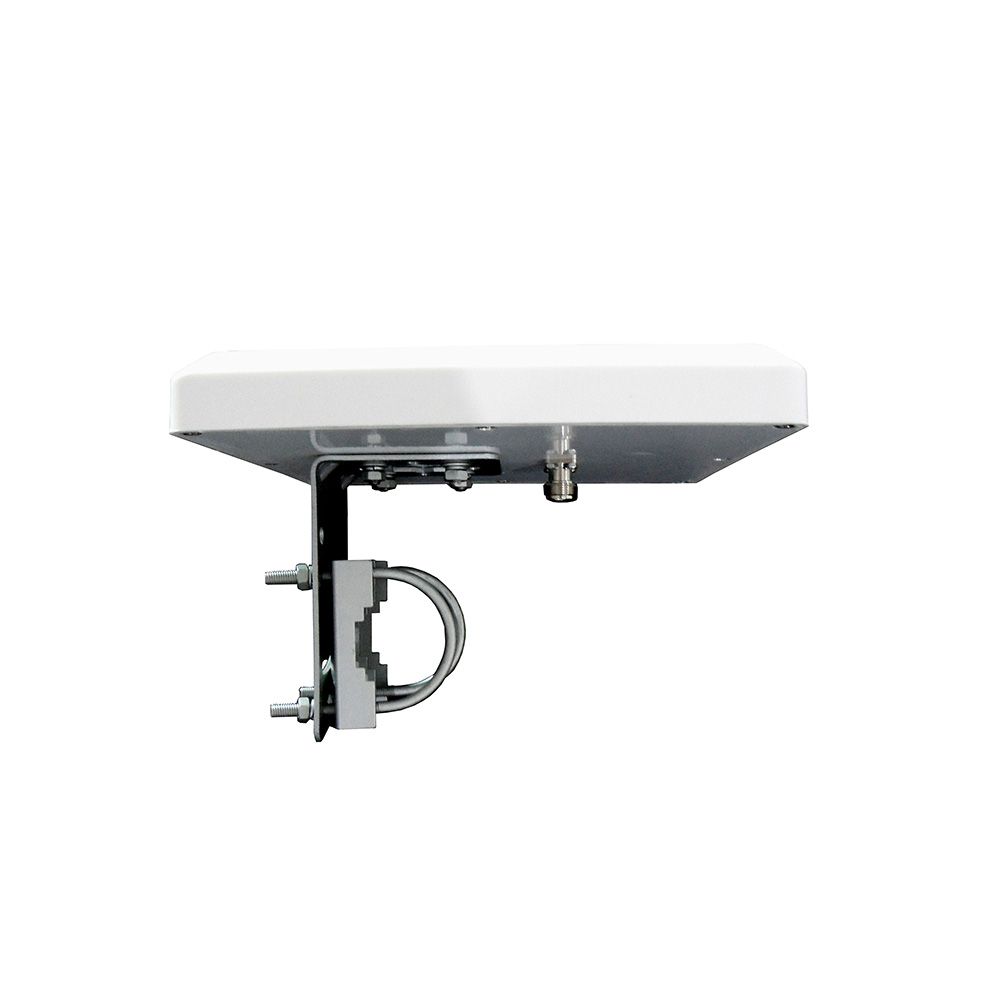

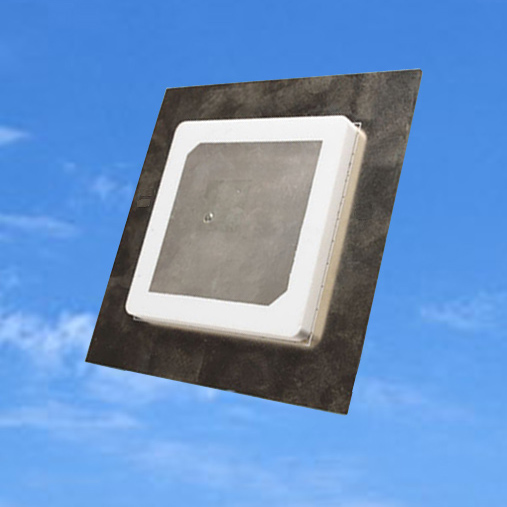

Frequency: 902-928 MHz / 865-868MHz; 7.5dBi,  70°, Pol: Circular or Linear, Size:250x250x35mm

Marks: Models for either US or EU applications, Horizontal and Vertical Tilt adjustment of up to 24-degrees. The rugged radome and heavy aluminum back plate make it well suited for industrial applications.

Frequency: 902-928 MHz / 865-868MHz; 9dBi,  68°, Pol: Circular or Linear, Size: 280x280x90mm

Marks: Custom Enclosures available, Low profile and rugged design for outdoor use, The rugged radome and heavy aluminum back plate make it well suited for industrial applications.

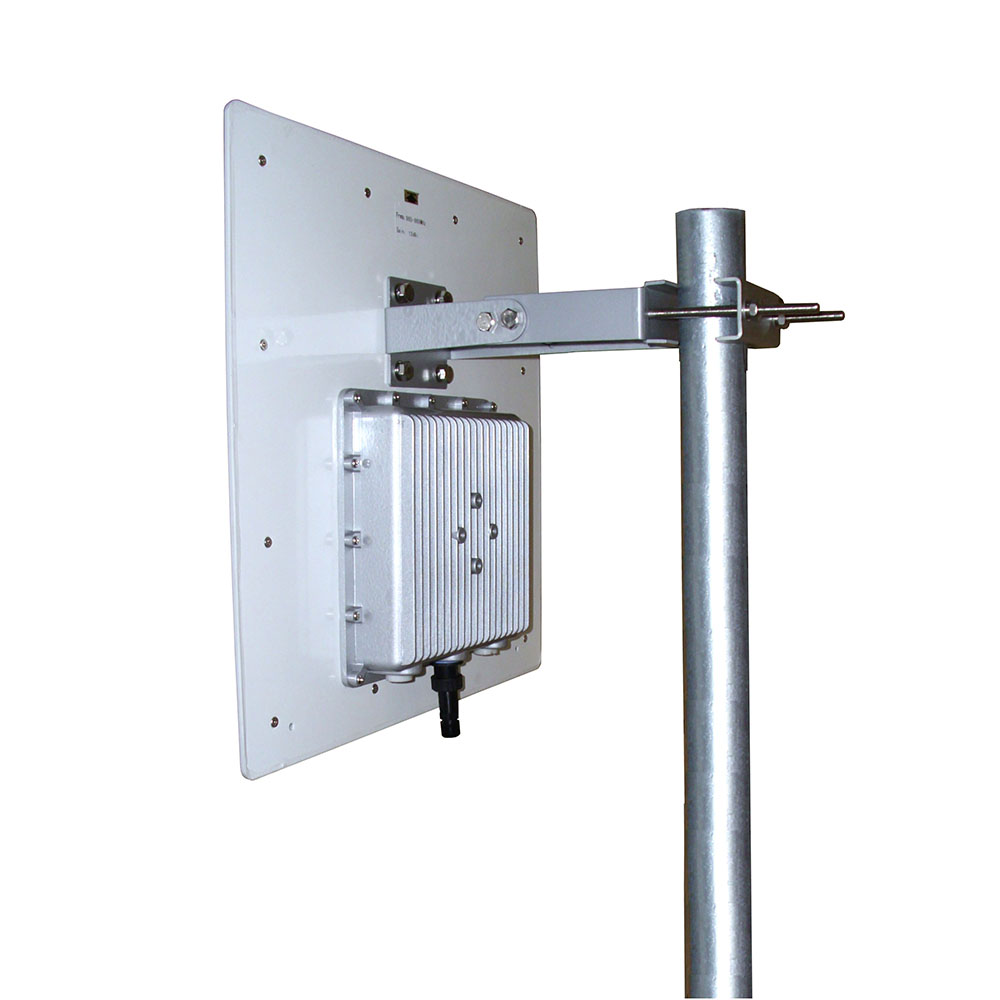

Frequency: 902-928 MHz / 865-868MHz; 12.5dBi,  45°, Pol: Circular or Linear, Size: 450x450x90mm

Marks: Custom Enclosures available, High Gain, Low profile and rugged design for outdoor use, The rugged radome and heavy aluminum back plate make it well suited for industrial applications.

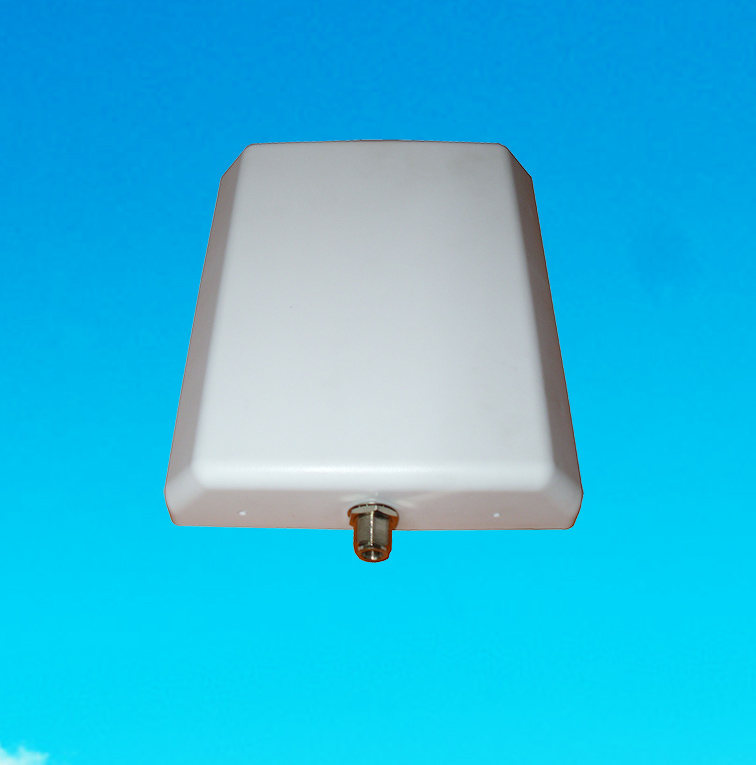

Frequency: 865-928MHz , 5dBi; Beamwidth: 73°, Pol: vertical, Size: 207x177x45mm

Marks: Models for both US and EU applications, Vertical Tilt adjustment of up to 24-degrees. The rugged radome and heavy aluminum back plate make it well suited for industrial applications.
